Magnetic Stirrer PCE-MSR 30

Category: Magnetic Stirrer
Magnetic Stirrer for liquids up to 5 l / Stirring speed up to 1600 rpm / Stirring plate temperature up to 300°C (572°F) / External temperature sensor / Adjustable direction of rotation / Program mode: up to 6 stirring program / 1 stirring position

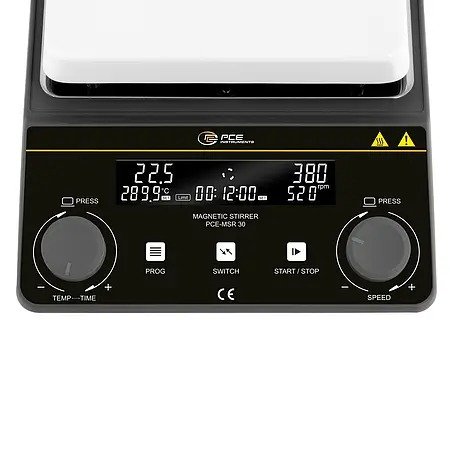

The Magnetic Stirrer offers a maximum stirring capacity of 5 liters and a continuously adjustable speed of 100 ... 1600 rpm with a high control accuracy of ±10 rpm. Driven by a brushless motor, the Magnetic Stirrer ensures reliable and maintenance-free performance. The intelligent PID temperature control enables precise heating in the range from room temperature to 300°C / 572°F. An external temperature sensor also ensures particularly precise control of the medium temperature, while an easy-to-read 3.7-inch LCD display clearly shows all the important parameters.

The robust worktop made of die-cast aluminum with a surface area of 155 x 155 mm / 6.1 x 6.1 in ensures even heat distribution and high resistance to chemical influences. Together with a stirring rod of Ø 8 x 30 mm, the Magnetic Stirrer is ideal for demanding applications. Functions such as an adjustable direction of rotation, a wide timer range from 1 second ... 99 hours and 59 minutes and the option of saving up to 6 individual stirring programs offer maximum flexibility in everyday laboratory work.

Thanks to the single stirring position, the Magnetic Stirrer is ideal for precise tasks in chemical syntheses, biological and pharmaceutical processes and materials research. Wherever precise temperature control and uniform stirring are required, this Magnetic Stirrer impresses with its powerful technology.

Highlights

- Stirring speed adjustable from 100 ... 1,600 rpm adjustable
- For a maximum of 5 liters of liquid
- Temperature control: PID method
- External temperature sensor
- Temperature sensor
- Stirring plate temperature: 0 ... 300°C / 32 ... 572°F
- Stirring plate with die-cast aluminum surface
- Number of stirring positions: 1
- Timer: 1 s ... 99 h 59 min
- Program mode: up to 6 stirring programs
- Power supply: 230V AC, 50/60 Hz

Specification

Speed
Measurement range up to   100 ... 1600 rpm
Resolution   1 rpm
Accuracy   ±10 U/min

Temperature sensor
Measurement range up to   -50 ... +300 °C
Resolution   1 °C
Accuracy   ±0.5°C

General technical data
Display type   LCD
Display size   3,7 Inch
Dimensions   Stirring plate: 150 x 150 mm
Stirring rod: Ø 8 x 30 mm
Performance   550 W
Number of stirring points   1
Drive of the stirring points   Brushless motor
Max. Stirring quantity   5 l
Stirring plate material   Cast aluminium with ceramic coating
Temperature   Stirring plate: 0 ... 300°C / Accuracy: ±3°C
Timer from   1 s
Timer until   100 h
Menu language   English, English (GB)
Protection class (device)   IP20
Power supply   230V AC | 50/60 Hz
Connector type   Cold-device plug
Operating conditions   0 ... 50 °C , 0 ... 80 % RH
Storage conditions   0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )   270 x 180 x 85 mm
Weight   1911 g
