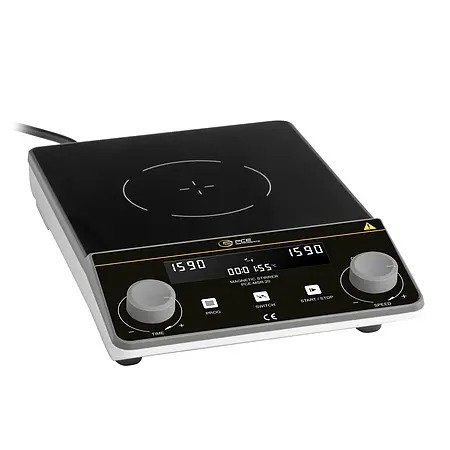

The Magnetic Stirrer is an easy-to-use laboratory device that is used for the efficient mixing of liquids. With a 3.7 inch LCD display and user-friendly controls, the stirring speed, stirring time and direction of rotation can be customized. The stirring speed can be set within a range of 100 ... 1,600 rpm and has an accuracy of ±10 rpm.
Our Magnetic Stirrer automatically saves the last set working parameters and up to six individually programmed stirring cycles. This enables a quick restart with the desired settings. The stirrer also has an integrated timer that allows precise time control from one second to 99 hours and 59 minutes.
The use of a brushless motor ensures maintenance-free and quiet operation. The robust acrylic stirring plate measuring 173 × 180 mm provides a stable base for a wide range of stirring tasks, even for longer operating times. The Magnetic Stirrer can process liquid volumes up to a maximum of 5 litres and is operated via a power supply of AC 100 ... 240V at 50 Hz.
It is a good solution for laboratory work where reliable and reproducible mixing without heating is required. It impresses with its robust design and easy handling in research facilities and industrial laboratories.
Highlights
Specification
| Speed | |
| Measurement range up to | 100 ... 1600 rpm |
| Resolution | 1 rpm |
| Accuracy | ±10 U/min |
| General technical data | |
| Display type | LCD |
| Display size | 3,7 Inch |
| Dimensions | Stirring plate: 173 x 180 mm Stirring rod: Ø 8 x 30 mm |
| Performance | 24 W |
| Number of stirring points | 1 |
| Drive of the stirring points | Brushless motor |
| Max. Stirring quantity | 5 l |
| Stirring plate material | Tempered glass |
| Timer from | 1 s |
| Timer until | 100 h |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |

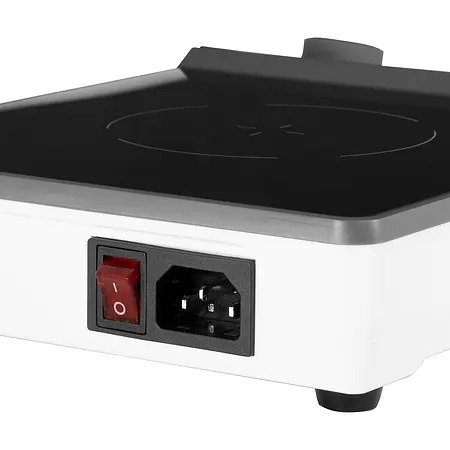

| Power supply | 100 ... 240 V AC | 50/60 Hz |
| Connector type | Cold-device plug |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 270 x 180 x 50 mm |
| Weight | 1110 g |
